In this post, I'll show you how to run your Play 2.1.x app silently as a background service and give you a couple tools you can use to ease the administration process for your app. All of this without the use of third party tools.
For this tutorial we will use the Zentasks sample application that came bundled with the framework. This tutorial assumes that:
- The zentasks project folder is located in C:\apps\zentasks
- The Java executable is located at C:\Program Files\Java\jdk1.7.0_25\bin\
Adjust these directories to suit your needs. Let's get started.
The Problem
You have several apps that you need to deploy in a production Windows environment, but you hate having the pesky command prompt window visible in the background when you run
play start for each application. You want your apps to run silently as Windows services on startup.
The Solution
Create a standalone distribution of your app by opening a command window and running
cd c:\apps\zentasks
play clean dist
In the
dist folder of the application directory, you should see an archive named
zentasks-1.0-SNAPSHOT.zip Extract the contents of that archive to the current folder.
In my case the location of my app is
C:\apps\zentasks and the location of the folder I just extracted from the archive is
C:\apps\zentasks\dis\zentasks-1.0-SNAPSHOT.
To run my app invisibly, I take advantage of the
javaw.exe application bundled with my Java installation. This file does exactly what
java.exe does but it does it in the background without showing a console window.
Note before continuing: Either turn off evolutions or set them to automatic in the
application.conf file. You can do that by following the example
here. Once that's done, run
play dist again.
In a command prompt window I then run the following commands:
cd c:\apps\zentasks\dist\zentasks-1.0-SNAPSHOT
javaw -cp lib\* play.core.server.NettyServer

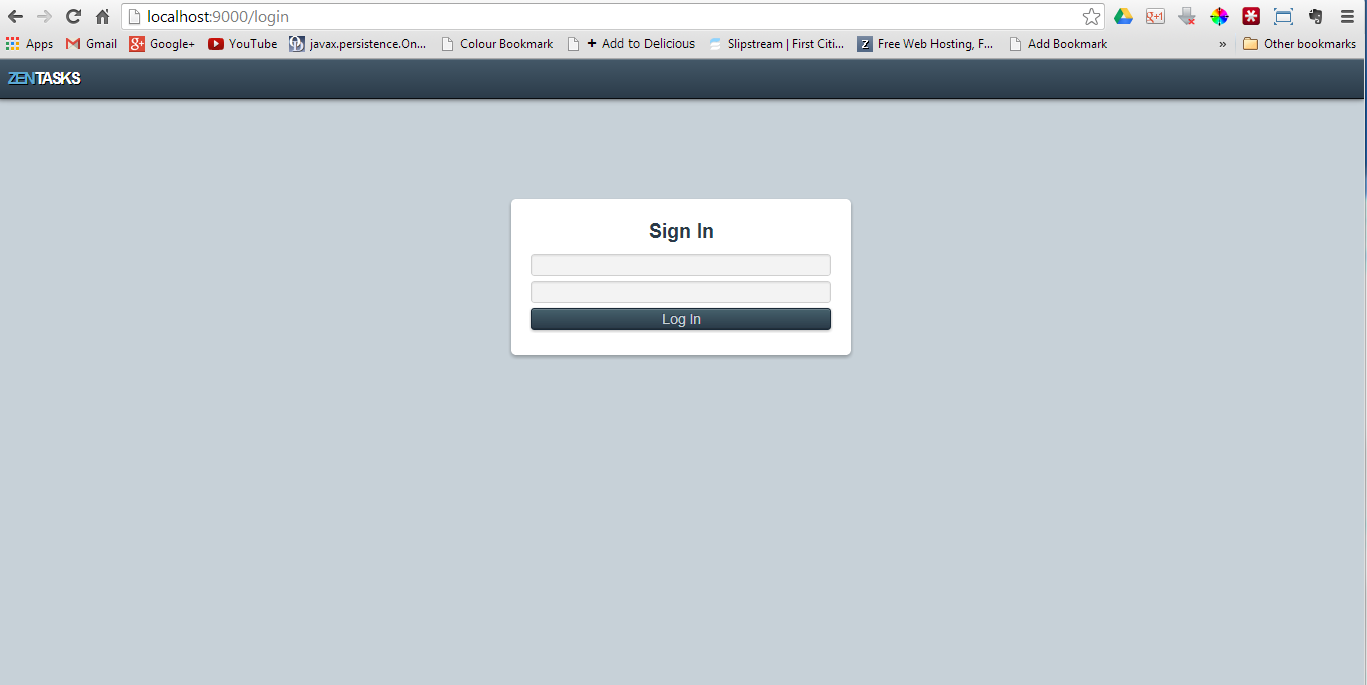

You'll notice that the command runs and returns you to the command prompt. Give it a couple seconds and go to
http://locahost:9000 (or whatever port you set the app to run on) and see if your app is running. It should be.
Once you have that sorted out, let's move on. We're going to create two batch files for starting and stopping the application. Once these files are created we can also place them in the Startup folder on our Start menu to have them execute when Windows starts up.
Batch File #1: Start.bat
Open a Notepad document and paste in the following:
cd .
start "" "C:\Program Files\Java\jdk1.7.0_25\bin\javaw.exe" -cp lib\* play.core.server.NettyServer
Substitute the correct paths where necessary and save the file as
start.bat in your application's
dist\zentasks-1.0-SNAPSHOT directory.
To test the file, open task manager and kill the
javaw.exe process,
then go to your application's
dist\zentasks-1.0-SNAPSHOT directory and delete the
RUNNING_PID file. Now double-click
start.bat, wait a couple seconds then go to
http://localhost:9000 to check if your app is up. It should be.
Batch File #2: Stop.bat
If starting your app in production mode is now that easy, then stopping it should be too.
Again, open a new Notepad document and paste in the following:
set /p pid=<RUNNING_PID
taskkill /PID %pid% /F
DEL RUNNING_PID
That information goes on three separate lines.
Save the file as
stop.bat, place it in your app's
dist\zentasks-1.0-SNAPSHOT directory and when you run it, it should kill the
javaw process that your app is running on and delete the
RUNNING_PID file as well. To ensure that your app has been shut down, go to
http://localhost:9000 and observe that your app is down.
At the end of it all your directory structure is supposed to look as follows:
* zentasks
*-- dist
*-- zentasks-1.0-SNAPSHOT
*-- lib
*-- RUNNING_PID
*-- start.bat
*-- stop.bat
You can now take this folder and plop it down on your production server worry-free. Yay!
Q&A
But what about my configuration options? What if I want to change the port that the application is running on?
Simple. In start.bat include
-Dhttp.port=xxxx or any other configuration options before the -cp argument. E.g:
start "" "C:\Program Files\Java\jdk1.7.0_25\bin\javaw.exe" -Dhttp.port=9001 -Dconfig.resource=prod.conf -cp ...
Is starting the application this way safe?
As far as I can tell, yes. The long and short of the story is that the command you place in the
start.bat file is what is essentially run when you execute
play start plus or minus a few directory and Java option changes.
+James Ward and the
+Play Framework team are free to correct me on this if I'm wrong.
Where will the logs and other necessary files be created?
A directory for logs will be created in the
dist\zentasks-1.0-SNAPSHOT folder and an
application.log file will be placed there. File system h2 databases will be placed in the
dist\zentasks-1.0-SNAPSHOT folder.
Where does the application read configuration items from in this mode?
In the lib directory of
dist\zentasks-1.0-SNAPSHOT there is a file named
zentasks_2.10-1.0-SNAPSHOT.jar If you were to extract the contents of this file, you'd see all the
evolutions and
*.conf files your created up to the point in time you ran the play dist command.
I hope this was helpful to you.
Thanks to
+James Ward and the amazing
+Play Framework team for all their hard work, and as always thank you for reading.
